Quickstart Guide

Get started with Artifex in 5 minutes! This guide walks you through installing Artifex and training your first generative model.

Prerequisites

• Python 3.10 or higher
• 8GB RAM (16GB recommended)
• Optional: NVIDIA GPU with CUDA 12.0+ for faster training

Step 1: Install Artifex

Choose your preferred installation method:

From Source (Recommended)PyPI (Coming Soon)

# Clone repository
git clone https://github.com/avitai/artifex.git
cd artifex

# Install with uv (fastest)
uv venv && source .venv/bin/activate
uv sync --all-extras

# Or with pip
python -m venv .venv && source .venv/bin/activate
pip install -e '.[dev]'

pip install artifex

Verify installation:

python -c "import jax; print(f'JAX backend: {jax.default_backend()}')"
# Should print: JAX backend: gpu (or cpu)

Step 2: Train Your First VAE

Create a new Python file train_vae.py:

import jax
import jax.numpy as jnp
import optax
from datarax import from_source
from datarax.core.config import ElementOperatorConfig
from datarax.dag.nodes import OperatorNode
from datarax.operators import ElementOperator
from datarax.sources import TfdsDataSourceConfig, TFDSSource
from flax import nnx

from artifex.generative_models.models.vae import VAE
from artifex.generative_models.core.configuration import (
    VAEConfig,
    EncoderConfig,
    DecoderConfig,
)

# 1. Load MNIST with datarax
def normalize(element, _key):
    """Normalize images from [0, 255] to [0, 1]."""
    image = element.data["image"].astype(jnp.float32) / 255.0
    return element.replace(data={**element.data, "image": image})

source = TFDSSource(
    TfdsDataSourceConfig(name="mnist", split="train", shuffle=True),
    rngs=nnx.Rngs(0),
)
normalize_op = ElementOperator(
    ElementOperatorConfig(stochastic=False), fn=normalize, rngs=nnx.Rngs(1)
)
pipeline = from_source(source, batch_size=32) >> OperatorNode(normalize_op)

# 2. Configure the model with nested configs
encoder = EncoderConfig(
    name="mnist_encoder",
    input_shape=(28, 28, 1),
    latent_dim=32,
    hidden_dims=(64, 128),
    activation="relu",
)

decoder = DecoderConfig(
    name="mnist_decoder",
    latent_dim=32,
    output_shape=(28, 28, 1),
    hidden_dims=(128, 64),
    activation="relu",
)

config = VAEConfig(
    name="mnist_vae",
    encoder=encoder,
    decoder=decoder,
    encoder_type="dense",
    kl_weight=1.0,
)

# 3. Create model and optimizer
rngs = nnx.Rngs(0)
model = VAE(config, rngs=rngs)
optimizer = nnx.Optimizer(model, optax.adam(1e-3), wrt=nnx.Param)

print("✓ Model created successfully!")
print(f"  Latent dimension: {model.latent_dim}")
state_leaves = jax.tree.leaves(nnx.state(model))
param_count = sum(p.size for p in state_leaves if hasattr(p, 'size'))
print(f"  Parameters: ~{param_count/1e6:.2f}M")

# 4. Training step (JIT-compiled for 3-50x speedup)
@nnx.jit  # Compiles to XLA for GPU/TPU acceleration
def train_step(model, optimizer, batch):
    """Single training step with automatic differentiation.

    JIT compilation provides significant speedups by:
    - Fusing operations to reduce memory transfers
    - Optimizing computation graphs for target hardware
    - Enabling XLA optimizations (constant folding, etc.)
    """
    def loss_fn(model):
        outputs = model(batch)
        loss_dict = model.loss_fn(x=batch, outputs=outputs)
        return loss_dict['loss'], loss_dict

    (loss, loss_dict), grads = nnx.value_and_grad(loss_fn, has_aux=True)(model)
    optimizer.update(model, grads)
    return loss, loss_dict

# 5. Train for one epoch
print("\nTraining for one epoch...")
step = 0

for batch in pipeline:
    images = batch["image"]

    # JIT-compiled train_step runs ~10-50x faster than eager execution
    loss, loss_dict = train_step(model, optimizer, images)

    if step % 500 == 0:
        print(f"Step {step:5d} | Loss: {loss:.4f} | "
              f"Recon: {loss_dict['reconstruction_loss']:.4f} | "
              f"KL: {loss_dict['kl_loss']:.4f}")
    step += 1

print("\n✓ Training complete!")

# 6. Generate samples
print("\nGenerating samples...")
samples = model.sample(n_samples=8)
print(f"✓ Generated {samples.shape[0]} samples with shape {samples.shape[1:]}")

# 7. Reconstruct an image
test_image = images[:1]  # Use last batch's first image
reconstructed = model.reconstruct(test_image, deterministic=True)
print(f"✓ Reconstructed image with shape {reconstructed.shape}")

print("\n🎉 Success! You've trained your first VAE with Artifex!")

Run the script:

python train_vae.py

Expected output:

✓ Model created successfully!
  Latent dimension: 32
  Parameters: ~0.18M

Training for one epoch...
Step     0 | Loss: 13.2877 | Recon: 0.2709 | KL: 13.0168
Step   500 | Loss: 0.3743 | Recon: 0.0815 | KL: 0.2928
Step  1000 | Loss: 0.1551 | Recon: 0.0623 | KL: 0.0928
...

✓ Training complete!

Generating samples...
✓ Generated 8 samples with shape (28, 28, 1)
✓ Reconstructed image with shape (1, 28, 28, 1)

🎉 Success! You've trained your first VAE with Artifex!

Step 3: Visualize Results (Optional)

Add visualization to your script:

import matplotlib.pyplot as plt

# Visualize generated samples
fig, axes = plt.subplots(2, 4, figsize=(10, 5))
for i, ax in enumerate(axes.flat):
    ax.imshow(samples[i].squeeze(), cmap='gray')
    ax.axis('off')
plt.suptitle('Generated Samples from VAE')
plt.tight_layout()
plt.savefig('vae_samples.png')
print("✓ Saved samples to vae_samples.png")

# Visualize reconstruction
fig, axes = plt.subplots(1, 2, figsize=(8, 4))
axes[0].imshow(test_image[0].squeeze(), cmap='gray')
axes[0].set_title('Original')
axes[0].axis('off')
axes[1].imshow(reconstructed[0].squeeze(), cmap='gray')
axes[1].set_title('Reconstructed')
axes[1].axis('off')
plt.tight_layout()
plt.savefig('vae_reconstruction.png')
print("✓ Saved reconstruction to vae_reconstruction.png")

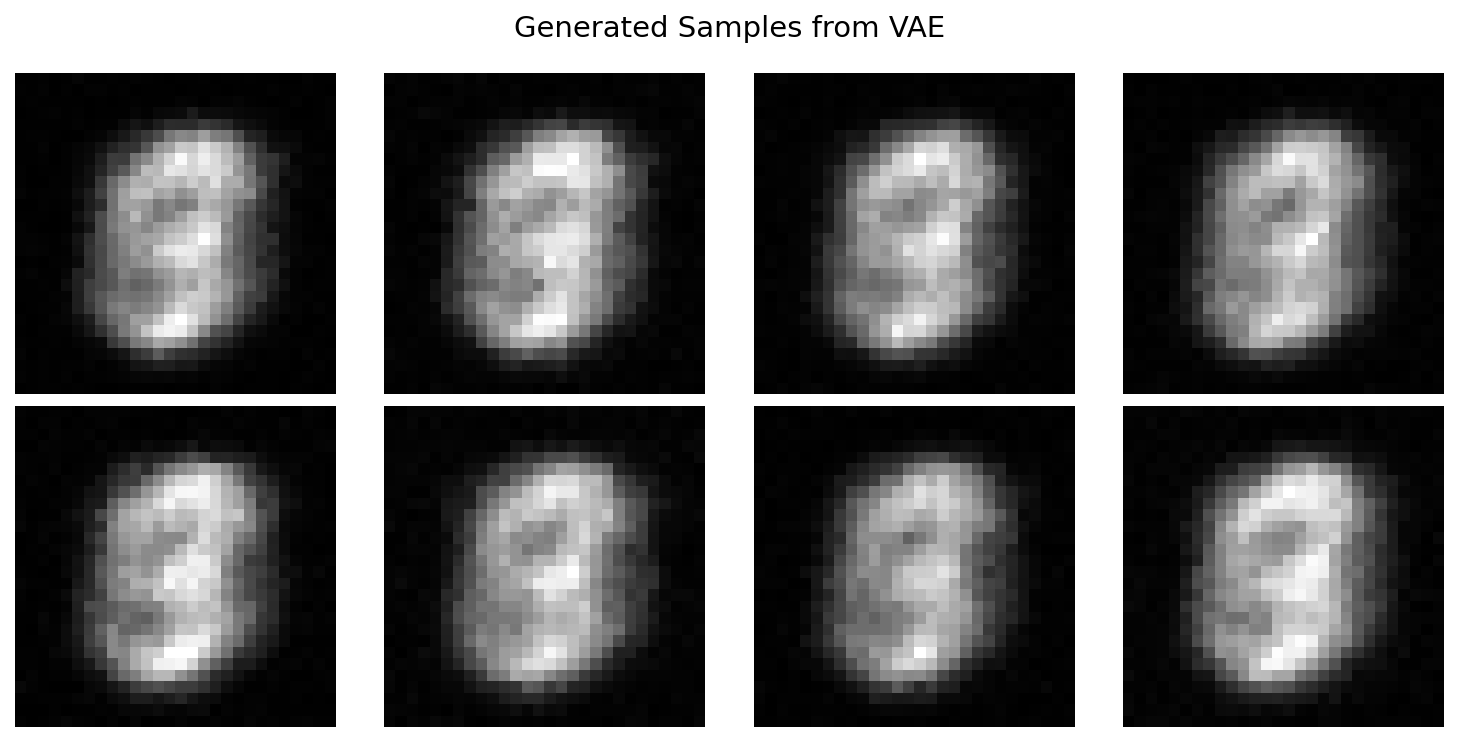

Generated VAE Samples:

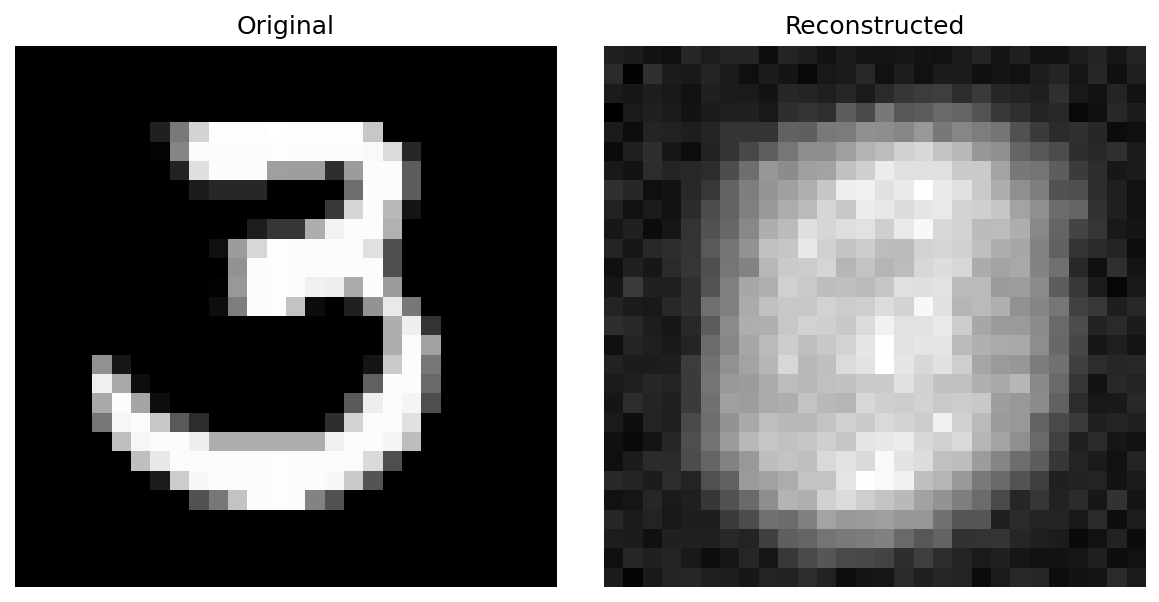

Original vs Reconstructed:

What You Just Did

In just a few minutes, you:

1. ✅ Installed Artifex - Set up the complete environment
2. ✅ Created a VAE - Built a variational autoencoder with configuration
3. ✅ Trained the model - Ran 100 training steps with loss monitoring
4. ✅ Generated samples - Created new images from the learned distribution
5. ✅ Reconstructed images - Tested the encoder-decoder pipeline

Key Concepts

Configuration System

config = ModelConfig(
    model_type="vae",           # Model type
    latent_dim=32,              # Latent space dimension
    input_shape=(28, 28, 1),    # Input image shape
    encoder_features=[64, 128], # Encoder layer sizes
    decoder_features=[128, 64], # Decoder layer sizes
    parameters={...}            # Model-specific parameters
)

Artifex uses a unified configuration system based on frozen dataclasses for type-safe, validated configurations.

Direct Model Instantiation

model = VAE(config, rngs=rngs)

Models are created directly from their configuration objects, providing full control and type safety.

RNG Management

rngs = nnx.Rngs(0)  # Random number generator

JAX requires explicit random number generators for reproducibility and functional purity.

Training Loop

The training loop follows standard JAX/Flax patterns with optimizations:

1. Forward pass: model(batch) → outputs
2. Compute loss: model.loss_fn() → loss values
3. Backward pass: nnx.value_and_grad() → gradients
4. Update weights: optimizer.update() → new parameters

Performance Tips:

• Use @nnx.jit on train_step for 10-50x speedup
• For large models, use @nnx.jit(donate_argnums=(1,)) to donate optimizer memory
• Avoid Python control flow inside JIT functions (use jax.lax.cond instead)

Try Different Models

Train a Diffusion Model

import jax
import jax.numpy as jnp
import optax
from datarax import from_source
from datarax.core.config import ElementOperatorConfig
from datarax.dag.nodes import OperatorNode
from datarax.operators import ElementOperator
from datarax.sources import TfdsDataSourceConfig, TFDSSource
from flax import nnx

from artifex.generative_models.models.diffusion import DDPMModel
from artifex.generative_models.core.configuration import (
    DDPMConfig,
    UNetBackboneConfig,
    NoiseScheduleConfig,
)
from artifex.generative_models.training.trainers import (
    DiffusionTrainer,
    DiffusionTrainingConfig,
)

# 1. Load Fashion-MNIST with datarax
def normalize(element, _key):
    """Normalize images to [-1, 1] for diffusion models."""
    image = element.data["image"].astype(jnp.float32) / 127.5 - 1.0
    return element.replace(data={**element.data, "image": image})

source = TFDSSource(
    TfdsDataSourceConfig(name="fashion_mnist", split="train", shuffle=True),
    rngs=nnx.Rngs(0),
)
normalize_op = ElementOperator(
    ElementOperatorConfig(stochastic=False), fn=normalize, rngs=nnx.Rngs(1)
)
pipeline = from_source(source, batch_size=64) >> OperatorNode(normalize_op)

# 2. Create DDPM configuration
backbone = UNetBackboneConfig(
    name="unet_backbone",
    in_channels=1,
    out_channels=1,
    hidden_dims=(32, 64, 128),
    channel_mult=(1, 2, 4),
    activation="silu",
)

noise_schedule = NoiseScheduleConfig(
    name="cosine_schedule",
    schedule_type="cosine",
    num_timesteps=1000,
    beta_start=1e-4,
    beta_end=2e-2,
)

config = DDPMConfig(
    name="fashion_ddpm",
    input_shape=(28, 28, 1),  # HWC format
    backbone=backbone,
    noise_schedule=noise_schedule,
)

# 3. Create model and optimizer
rngs = nnx.Rngs(42)
model = DDPMModel(config, rngs=rngs)
optimizer = nnx.Optimizer(model, optax.adamw(1e-4), wrt=nnx.Param)

# 4. Configure trainer with SOTA techniques (min-SNR weighting, EMA)
trainer = DiffusionTrainer(
    noise_schedule=model.noise_schedule,
    config=DiffusionTrainingConfig(
        loss_weighting="min_snr",  # Min-SNR weighting for faster convergence
        snr_gamma=5.0,
        ema_decay=0.9999,
    ),
)

# JIT-compile the train_step for performance
jit_train_step = nnx.jit(trainer.train_step)

# 5. Training loop
rng = jax.random.PRNGKey(0)
step = 0

for batch in pipeline:
    rng, step_rng = jax.random.split(rng)
    _, metrics = jit_train_step(model, optimizer, {"image": batch["image"]}, step_rng)
    trainer.update_ema(model)  # EMA updates outside JIT

    if step % 100 == 0:
        print(f"Step {step}: loss={metrics['loss']:.4f}")
    step += 1

# 6. Generate samples
samples = model.sample(n_samples_or_shape=8, steps=100)
print(f"Generated samples shape: {samples.shape}")

Train a GAN

from flax import nnx
from artifex.generative_models.models.gan import DCGAN
from artifex.generative_models.core.configuration import (
    DCGANConfig,
    ConvGeneratorConfig,
    ConvDiscriminatorConfig,
)

# Create DCGAN configuration with convolutional networks
generator = ConvGeneratorConfig(
    name="dcgan_generator",
    latent_dim=100,
    hidden_dims=(512, 256, 128, 64),
    output_shape=(1, 28, 28),  # CHW format
    activation="relu",
    batch_norm=True,
    kernel_size=(4, 4),
    stride=(2, 2),
    padding="SAME",
)

discriminator = ConvDiscriminatorConfig(
    name="dcgan_discriminator",
    hidden_dims=(64, 128, 256, 512),
    input_shape=(1, 28, 28),  # CHW format
    activation="leaky_relu",
    leaky_relu_slope=0.2,
    batch_norm=True,
    kernel_size=(4, 4),
    stride=(2, 2),
    padding="SAME",
)

config = DCGANConfig(
    name="mnist_dcgan",
    generator=generator,
    discriminator=discriminator,
)

rngs = nnx.Rngs(params=0, dropout=1, sample=2)
model = DCGAN(config, rngs=rngs)
print(f"✓ DCGAN created with latent_dim={config.generator.latent_dim}")

Next Steps

Now that you have a working setup, explore more:

• Learn Core Concepts

  ---

  Understand generative modeling fundamentals and Artifex architecture

  Core Concepts

• Build Your First Model

  ---

  Step-by-step tutorial to build a VAE from scratch with real data

  First Model Tutorial

• Explore Model Guides

  ---

  Deep dive into VAEs, GANs, Diffusion, Flows, and more

  VAE Guide Model Implementations

• Check Examples

  ---

  Ready-to-run examples for various models and use cases

  Examples

Common Next Questions

How do I use real data?

See the Data Pipeline Guide for loading CIFAR-10, ImageNet, and custom datasets.

How do I save and load models?

# Save
from flax.training import checkpoints
checkpoints.save_checkpoint('checkpoints/', model, step=100)

# Load
model = checkpoints.restore_checkpoint('checkpoints/', model)

See Training Guide for details on checkpointing.

How do I train on multiple GPUs?

Artifex supports distributed training out of the box. See Distributed Training Guide.

What if I get errors?

If you encounter issues, open an issue on GitHub.

Quick Reference

Model Types

Type	Model Class	Config Class	Use Case
VAE	VAE	VAEConfig	Latent representations, data compression
GAN	DCGAN, GAN	DCGANConfig, GANConfig	High-quality image generation
Diffusion	DDPMModel	DDPMConfig	State-of-the-art generation, controllable
Flow	FlowModel	FlowConfig	Exact likelihood, invertible transformations
EBM	EnergyBasedModel	EBMConfig	Energy-based modeling, composable

Key Commands

# Install
uv sync --all-extras

# Run tests
pytest tests/ -v

# Format code
ruff format src/

# Type check
pyright src/

# Build docs
mkdocs serve

Getting Help

• Documentation: Comprehensive guides and API reference
• Examples: Ready-to-run code in examples/
• Issues: GitHub Issues
• Discussions: GitHub Discussions

---

Congratulations! 🎉 You've completed the quickstart guide. You're now ready to build more sophisticated generative models with Artifex!

Next recommended step: Core Concepts to understand the architecture better, or First Model Tutorial to build a complete VAE with real data.
