Training a GAN on 2D Data with GANTrainer

Level: Beginner | Runtime: ~2-3 minutes (GPU/CPU) | Format: Python + Jupyter

This tutorial demonstrates how to train a GAN using Artifex's high-level GANTrainer API. Instead of implementing training from scratch, we use Artifex's WGAN-GP (Wasserstein GAN with Gradient Penalty) for stable, mode-collapse-free training on a simple 2D circular distribution.

Files

• Python Script: examples/generative_models/image/gan/simple_gan.py
• Jupyter Notebook: examples/generative_models/image/gan/simple_gan.ipynb

Dual-Format Implementation

This example is available in two synchronized formats:

• Python Script (.py) - For version control, IDE development, and CI/CD integration
• Jupyter Notebook (.ipynb) - For interactive learning, experimentation, and exploration

Both formats contain identical content and can be used interchangeably.

Quick Start

# Activate Artifex environment
source activate.sh

# Run the Python script
python examples/generative_models/image/gan/simple_gan.py

# Or launch Jupyter notebook for interactive exploration
jupyter lab examples/generative_models/image/gan/simple_gan.ipynb

Overview

Learning Objectives:

• Understand WGAN-GP and why it provides stable training
• Use Artifex's Generator and Discriminator classes with configs
• Configure GANTrainer with WGAN-GP loss and gradient penalty
• Train using JIT-compiled training steps for performance
• Monitor Wasserstein distance during training
• Visualize real vs. generated data distributions

Prerequisites:

• Basic understanding of neural networks and GANs
• Familiarity with JAX and Flax NNX basics
• Artifex installed

Estimated Time: 10-15 minutes

What's Covered

• 2D Data

  ---

  Simple circular distribution for easy visualization of GAN learning

• Model Configuration

  ---

  Generator and Discriminator with GeneratorConfig, DiscriminatorConfig

• GANTrainer API

  ---

  WGAN-GP training with gradient penalty for stability

• JIT Compilation

  ---

  nnx.jit for optimized training performance

• Training Monitoring

  ---

  Wasserstein distance and loss curves visualization

• Evaluation

  ---

  Comparing real and generated data distributions

Expected Results

After 5,000 training steps:

• Training time: ~2-3 minutes on GPU/CPU
• Final Wasserstein distance: Near 0 (distributions match)
• Generated samples: Points forming a circle matching real data

---

Why These Techniques Matter

Before diving into the code, let's understand why we use specific techniques:

Technique	Problem it Solves	Our Solution
WGAN-GP loss	Vanilla GAN loss causes training instability and mode collapse	Wasserstein loss provides meaningful gradients throughout training
Gradient penalty (λ=0.1)	Weight clipping in WGAN limits model capacity	GP enforces Lipschitz constraint smoothly without clipping
5 critic iterations	Generator may overpower discriminator	Train critic more to provide better gradients to generator
Adam β1=0.5, β2=0.9	Standard Adam β1=0.9 causes GAN instability	Lower β1 reduces momentum, β2=0.9 is WGAN-GP standard
No batch normalization	Batch norm can cause issues with gradient penalty	WGAN-GP works best without batch norm
Matched latent/output dim	Complex latent→output mapping	2D latent for 2D output simplifies learning

---

Prerequisites

Installation

# Install Artifex
uv sync

# Or with CUDA support
uv sync --extra cuda-dev

---

Step 1: Setup and Imports

import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import optax
from flax import nnx
from tqdm import tqdm

# Artifex imports
from artifex.generative_models.core.configuration.network_configs import (
    DiscriminatorConfig,
    GeneratorConfig,
)
from artifex.generative_models.models.gan import Discriminator, Generator
from artifex.generative_models.training.trainers.gan_trainer import (
    GANTrainer,
    GANTrainingConfig,
)

print(f"JAX backend: {jax.default_backend()}")
print(f"Devices: {jax.devices()}")

---

Step 2: Configuration

Training configuration based on the official WGAN-GP implementation:

# Configuration (based on official WGAN-GP toy implementation)
SEED = 42
NUM_STEPS = 5000  # Training iterations
BATCH_SIZE = 256
LATENT_DIM = 2  # Match output dim for simpler mapping
N_CRITIC = 5  # Critic iterations per generator step
LR = 1e-4  # Adam learning rate
GP_WEIGHT = 0.1  # Gradient penalty weight (0.1 for toy data)
HIDDEN_DIM = 128  # Hidden layer dimension

Why these values?

• 5,000 steps: Sufficient for 2D toy data to converge
• Batch size 256: Standard for WGAN-GP toy experiments
• Latent dim 2: Matches output dimension for simpler mapping
• GP weight 0.1: Lower than standard 10.0, faster convergence for toy data
• Hidden dim 128: Balance between capacity and training speed

---

Step 3: Data Generation

We use a simple circular distribution for visualization:

def generate_circle_data(key, batch_size):
    """Generate 2D points on a unit circle with noise."""
    theta_key, noise_key = jax.random.split(key)
    theta = jax.random.uniform(theta_key, (batch_size,)) * 2 * jnp.pi
    r = 1.0 + jax.random.normal(noise_key, (batch_size,)) * 0.05
    x = r * jnp.cos(theta)
    y = r * jnp.sin(theta)
    return jnp.stack([x, y], axis=-1)

Why Circular Data?

• Simple 2D distribution is easy to visualize
• Clear success metric: generated points should form a circle
• Fast training for demonstration purposes

---

Step 4: Create Models Using Artifex's API

Use Artifex's Generator and Discriminator classes with configuration objects:

# Generator configuration
gen_config = GeneratorConfig(
    name="circle_generator",
    hidden_dims=(HIDDEN_DIM, HIDDEN_DIM, HIDDEN_DIM),  # 3-layer MLP
    output_shape=(1, 2),  # 2D output
    latent_dim=LATENT_DIM,
    activation="relu",
    batch_norm=False,  # No batch norm for WGAN-GP
    dropout_rate=0.0,
)

# Discriminator (critic) configuration
disc_config = DiscriminatorConfig(
    name="circle_discriminator",
    input_shape=(1, 2),  # 2D input
    hidden_dims=(HIDDEN_DIM, HIDDEN_DIM, HIDDEN_DIM),
    activation="relu",
    batch_norm=False,
    dropout_rate=0.0,
)

# Create models
gen_rngs = nnx.Rngs(params=gen_key)
disc_rngs = nnx.Rngs(params=disc_key)

generator = Generator(config=gen_config, rngs=gen_rngs)
discriminator = Discriminator(config=disc_config, rngs=disc_rngs)

Artifex Model Features:

• Frozen dataclass configurations for type safety
• Configurable MLP architectures
• Optional batch normalization and dropout
• Automatic initialization with RNGs

---

Step 5: Create GANTrainer with WGAN-GP

Use Artifex's GANTrainer with WGAN-GP configuration:

# Optimizers (Adam with beta1=0.5, beta2=0.9 as per official WGAN-GP)
gen_optimizer = nnx.Optimizer(
    generator,
    optax.adam(LR, b1=0.5, b2=0.9),
    wrt=nnx.Param,
)
disc_optimizer = nnx.Optimizer(
    discriminator,
    optax.adam(LR, b1=0.5, b2=0.9),
    wrt=nnx.Param,
)

# GANTrainer configuration with WGAN-GP
gan_config = GANTrainingConfig(
    loss_type="wasserstein",  # WGAN loss
    n_critic=N_CRITIC,
    gp_weight=GP_WEIGHT,  # Gradient penalty
    gp_target=1.0,
    r1_weight=0.0,
    label_smoothing=0.0,
)

trainer = GANTrainer(config=gan_config)

# JIT-compile training steps for performance
jit_d_step = nnx.jit(trainer.discriminator_step)
jit_g_step = nnx.jit(trainer.generator_step)

GANTrainer Features:

• WGAN-GP loss with configurable gradient penalty
• JIT-compatible training steps
• Returns metrics for monitoring (d_real, d_fake scores)

---

Step 6: Training Loop

The training loop uses Artifex's GANTrainer methods:

pbar = tqdm(range(NUM_STEPS), desc="Training")
for step in pbar:
    train_key, *step_keys = jax.random.split(train_key, 2 + N_CRITIC * 2)

    # Train Discriminator (N_CRITIC steps)
    for i in range(N_CRITIC):
        d_data_key, d_z_key, d_gp_key = jax.random.split(step_keys[i], 3)
        real_data = generate_circle_data(d_data_key, BATCH_SIZE)
        z = jax.random.normal(d_z_key, (BATCH_SIZE, LATENT_DIM))

        # Use Artifex's JIT-compiled discriminator step
        d_loss, d_metrics = jit_d_step(
            generator, discriminator, disc_optimizer, real_data, z, d_gp_key
        )

    # Train Generator (1 step)
    z = jax.random.normal(step_keys[-1], (BATCH_SIZE, LATENT_DIM))
    g_loss, g_metrics = jit_g_step(generator, discriminator, gen_optimizer, z)

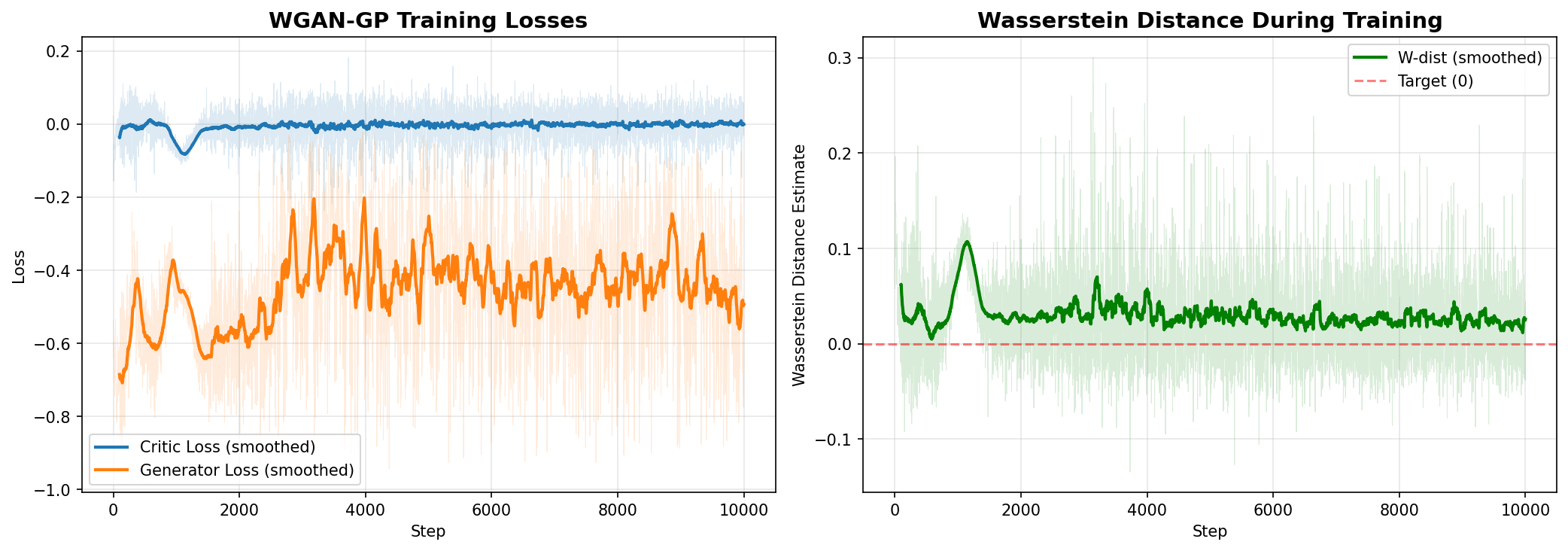

    # Monitor Wasserstein distance
    w_dist = d_metrics.get("d_real", 0.0) - d_metrics.get("d_fake", 0.0)
    pbar.set_postfix({"D": f"{d_loss:.3f}", "G": f"{g_loss:.3f}", "W": f"{w_dist:.3f}"})

Training Procedure per Step:

1. Train discriminator (critic) for N_CRITIC iterations
2. Each critic step: sample real data, sample latent noise, compute loss with gradient penalty
3. Train generator for 1 iteration
4. Monitor Wasserstein distance (D(real) - D(fake))

---

Step 7: Generate Samples and Visualize

# Generate samples
n_samples = 1000
final_real = generate_circle_data(jax.random.key(5000), n_samples)
z_final = jax.random.normal(jax.random.key(6000), (n_samples, LATENT_DIM))
final_fake = generator(z_final)

# Evaluate radius statistics
real_radius = jnp.sqrt(jnp.sum(final_real**2, axis=1))
fake_radius = jnp.sqrt(jnp.sum(final_fake**2, axis=1))

print(f"Real: mean_radius = {jnp.mean(real_radius):.4f} ± {jnp.std(real_radius):.4f}")
print(f"Fake: mean_radius = {jnp.mean(fake_radius):.4f} ± {jnp.std(fake_radius):.4f}")

Interpretation:

• Mean radius should be close to 1.0 (the true circle radius)
• Standard deviation should be small (~0.05, matching the noise)
• Generated and real statistics should be similar

---

Experiments to Try

1. Increase Training Steps: Train for 10,000+ steps for even better convergence

NUM_STEPS = 10000

1. Adjust Gradient Penalty: Try different GP weights

GP_WEIGHT = 1.0   # Higher penalty (more regularization)
GP_WEIGHT = 0.01  # Lower penalty (less regularization)

1. Change Architecture: Add more layers or neurons

HIDDEN_DIM = 256  # Larger network

1. Different Data Distribution: Try other 2D distributions

# Two concentric circles, spiral, etc.

1. Adjust Critic Iterations: Try more or fewer critic steps

N_CRITIC = 10  # More critic training per generator step

---

Troubleshooting

Generator output doesn't match the circle

• Solution: Train for more steps (5,000-10,000)
• Check: Wasserstein distance should decrease during training
• Fix: Increase HIDDEN_DIM for more model capacity

Training is unstable

• Solution: Lower learning rate to 5e-5
• Check: Ensure batch normalization is disabled for WGAN-GP
• Fix: Increase gradient penalty weight to 1.0

Mode collapse (all points in one location)

• Solution: This is rare with WGAN-GP, but try increasing N_CRITIC
• Check: Wasserstein distance should not be near 0 immediately
• Fix: Ensure you're using loss_type="wasserstein", not vanilla

---

Summary

In this tutorial, you learned:

• Artifex GANTrainer: Using the high-level training API instead of manual implementation
• WGAN-GP: Why Wasserstein loss with gradient penalty provides stable training
• Configuration: Setting up Generator and Discriminator with config objects
• JIT Compilation: Using nnx.jit for optimized training performance
• Monitoring: Tracking Wasserstein distance as a training metric

---

Next Steps

Related Examples

• VAE on MNIST

  ---

  Compare GAN with VAE generative approach

• Diffusion on MNIST

  ---

  Learn about diffusion models for image generation

• Flow on MNIST

  ---

  Explore normalizing flows for exact likelihood

• Advanced GAN

  ---

  DCGAN, conditional GAN, and more advanced techniques

Documentation Resources

• GAN Concepts: Deep dive into GAN theory
• GAN User Guide: Advanced usage patterns
• GAN API Reference: Complete API documentation

Papers

1. Generative Adversarial Networks (Goodfellow et al., 2014)

2. Original GAN paper: https://arxiv.org/abs/1406.2661

3. Wasserstein GAN (Arjovsky et al., 2017)

4. WGAN paper: https://arxiv.org/abs/1701.07875

5. Improved Training of Wasserstein GANs (Gulrajani et al., 2017)

6. WGAN-GP paper: https://arxiv.org/abs/1704.00028

Congratulations! You've successfully trained a GAN using Artifex's GANTrainer API!
