Training a Flow Model on MNIST with RealNVP¤

Level: Beginner | Runtime: ~50 minutes (GPU), ~4-5 hours (CPU) | Format: Python + Jupyter

This tutorial demonstrates how to train a RealNVP normalizing flow model using Artifex's configuration-based API. Instead of implementing flow transformations from scratch, we use Artifex's RealNVP class with RealNVPConfig and CouplingNetworkConfig for clean, production-ready training. We also use DataRax for efficient GPU-accelerated data loading.

Files¤

Dual-Format Implementation

This example is available in two synchronized formats:

  • Python Script (.py) - For version control, IDE development, and CI/CD integration
  • Jupyter Notebook (.ipynb) - For interactive learning, experimentation, and exploration

Both formats contain identical content and can be used interchangeably.

Quick Start¤

# Activate Artifex environment
source activate.sh

# Run the Python script
python examples/generative_models/image/flow/flow_mnist.py

# Or launch Jupyter notebook for interactive exploration
jupyter lab examples/generative_models/image/flow/flow_mnist.ipynb

Overview¤

Learning Objectives:

  • Understand why dequantization is critical for flow models
  • Use Artifex's RealNVP with RealNVPConfig and CouplingNetworkConfig
  • Use DataRax for efficient GPU-accelerated data loading
  • Configure learning rate warmup with cosine decay for stable training
  • Train using negative log-likelihood (maximum likelihood)
  • Generate samples from the trained flow model
  • Visualize training curves with smoothing

Prerequisites:

  • Basic understanding of neural networks and generative models
  • Familiarity with JAX and Flax NNX basics
  • Artifex installed with CUDA support (recommended)

Estimated Time: 45-60 minutes

What's Covered¤

  • Dequantization

    Converting discrete MNIST pixels to continuous data for flow models

  • Model Configuration

    RealNVP with 8 coupling layers and MLP networks

  • LR Schedule

    Warmup + cosine decay for stable training convergence

  • Training Loop

    Negative log-likelihood optimization with gradient clipping

  • Sample Generation

    Generating new digits from the base distribution

  • Visualization

    Training curves with smoothing and learning rate monitoring

Expected Results¤

After 100 epochs of training:

  • Training time: ~50 minutes on GPU (RTX 4090)
  • Final NLL: ~-2500 to -2700 (more negative is better)
  • Generated samples: Clear, recognizable digits

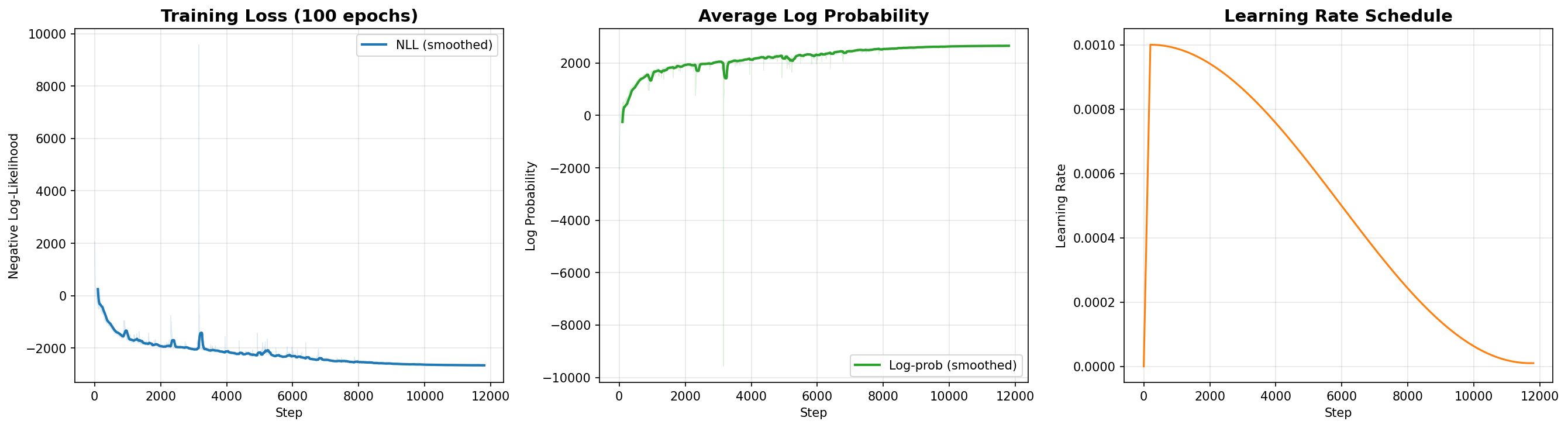

Training Curves

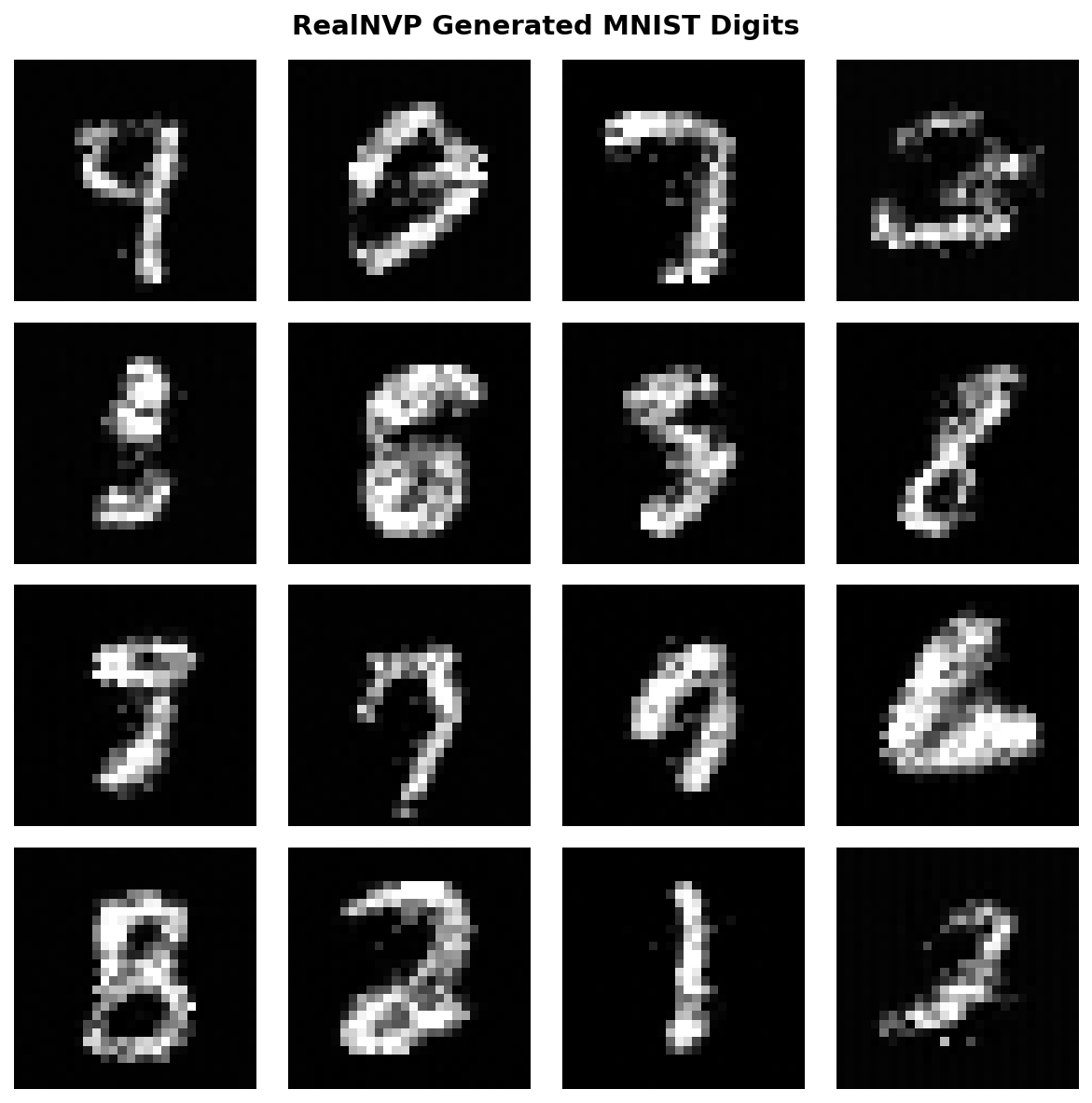

Generated Samples

Why These Techniques Matter¤

Before diving into the code, let's understand why we use specific techniques:

Technique Problem it Solves Our Solution
Dequantization Flow models require continuous data, MNIST is discrete (0-255) Add uniform noise U(0, 1/256) to each pixel
12 coupling layers Insufficient layers limit expressiveness More layers for better expressiveness
4-layer MLPs (512 units) Coupling networks need enough capacity Deeper/wider networks capture complex transformations
LR warmup (200 steps) Large gradients early in training cause instability Gradual warmup prevents early divergence
Cosine decay Constant LR leads to oscillation late in training Decay allows fine-tuning as training progresses
Gradient clipping Flow models can have exploding gradients Global norm clipping to 1.0 ensures stability
Scale activation tanh Unbounded scale outputs cause numerical issues Tanh bounds scale to [-1, 1] for stability
JIT compilation Python overhead slows training nnx.jit compiles training step for GPU acceleration
DataRax Inefficient CPU-based data loading GPU-accelerated batching with JIT compilation

Prerequisites¤

Installation¤

# Install Artifex with CUDA support (recommended)
uv sync --extra cuda-dev

# Or CPU-only
uv sync

Step 1: Setup and Imports¤

import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
import optax
from flax import nnx
from tqdm import tqdm

# Artifex imports
from artifex.generative_models.core.configuration.flow_config import (
    CouplingNetworkConfig,
    RealNVPConfig,
)
from artifex.generative_models.models.flow.real_nvp import RealNVP

print(f"JAX backend: {jax.default_backend()}")
print(f"Devices: {jax.devices()}")

Step 2: Configuration¤

Training configuration based on RealNVP best practices:

# Configuration (based on RealNVP best practices)
SEED = 42
NUM_EPOCHS = 100  # 100 epochs for good quality
BATCH_SIZE = 512  # Larger batch size for better GPU utilization
BASE_LR = 1e-3  # Scale LR with batch size
WARMUP_STEPS = 200  # Warmup steps

Why these values?

  • 100 epochs: Sufficient for clear, recognizable digits
  • Batch size 512: Better GPU utilization and stable gradients
  • LR 1e-3: Higher LR scaled with batch size for faster convergence
  • Warmup 200 steps: Quick warmup to stabilize early training

Step 3: Data Loading and Preprocessing¤

Flow models require continuous data. MNIST is discrete (0-255), so we apply dequantization:

import tensorflow_datasets as tfds

def load_mnist_data():
    """Load MNIST dataset."""
    ds_train = tfds.load("mnist", split="train", shuffle_files=False, as_supervised=True)

    train_images = []
    for image, _ in ds_train:
        train_images.append(np.array(image))
    return np.array(train_images)

def preprocess_for_flow(images, key):
    """Preprocess MNIST for flow models: normalize, flatten, dequantize, scale."""
    # Normalize to [0, 1]
    images = images.astype(np.float32) / 255.0

    # Flatten to (N, 784)
    images = images.reshape(len(images), -1)

    # Dequantization: add uniform noise
    noise = jax.random.uniform(key, images.shape) / 256.0
    images = images + noise

    # Scale to [-1, 1]
    images = (images - 0.5) / 0.5

    return images

train_images = load_mnist_data()
print(f"Train: {train_images.shape}")  # (60000, 28, 28, 1)

Why Dequantization?

  • Flow models compute exact likelihoods using the change of variables formula
  • Discrete data leads to infinite log-likelihood (delta functions)
  • Adding uniform noise creates a valid continuous density

Step 4: Create RealNVP Using Artifex's API¤

Use Artifex's RealNVP class with configuration objects:

# Initialize RNGs
key = jax.random.key(SEED)
params_key, noise_key, sample_key, dropout_key = jax.random.split(key, 4)
rngs = nnx.Rngs(
    params=params_key,
    noise=noise_key,
    sample=sample_key,
    dropout=dropout_key,
)

# Coupling network config (4 hidden layers with 512 units each for better capacity)
coupling_config = CouplingNetworkConfig(
    name="coupling_mlp",
    hidden_dims=(512, 512, 512, 512),  # 4 hidden layers with more capacity
    activation="relu",
    network_type="mlp",
    scale_activation="tanh",
)

# RealNVP config (12 coupling layers for better expressiveness)
flow_config = RealNVPConfig(
    name="realnvp_mnist",
    coupling_network=coupling_config,
    input_dim=784,  # 28*28
    base_distribution="normal",
    num_coupling_layers=12,  # More layers for better expressiveness
    mask_type="checkerboard",
)

# Create model
model = RealNVP(flow_config, rngs=rngs)
print(f"RealNVP created: {flow_config.num_coupling_layers} coupling layers")

Artifex Model Features:

  • Frozen dataclass configurations for type safety
  • Configurable coupling networks with MLP architecture
  • Checkerboard masking for alternating dimensions
  • Normal base distribution for standard flow training

Step 5: Create Optimizer with LR Schedule¤

Use learning rate warmup with cosine decay for stable training:

# Calculate total training steps for learning rate schedule
total_steps = NUM_EPOCHS * (60000 // BATCH_SIZE)
print(f"Total training steps: {total_steps}")

# Learning rate schedule: warmup + cosine decay
lr_schedule = optax.warmup_cosine_decay_schedule(
    init_value=0.0,
    peak_value=BASE_LR,
    warmup_steps=WARMUP_STEPS,
    decay_steps=total_steps,
    end_value=BASE_LR * 0.01,
)

# Optimizer with gradient clipping and LR schedule
optimizer = nnx.Optimizer(
    model,
    optax.chain(
        optax.clip_by_global_norm(1.0),
        optax.adam(lr_schedule)
    ),
    wrt=nnx.Param
)

Why This LR Schedule?

  • Warmup: Prevents large gradients from destabilizing early training
  • Cosine decay: Smooth reduction allows fine-tuning without sudden jumps
  • End value 1% of peak: Small LR at end for final refinement

Step 6: Training Step¤

Define the training step for maximum likelihood training:

def train_step(model, optimizer, batch):
    """Training step for RealNVP (maximum likelihood)."""
    def loss_fn(model):
        outputs = model(batch, training=True)
        log_prob = outputs["log_prob"]
        loss = -jnp.mean(log_prob)  # Negative log-likelihood
        return loss, {"nll": loss, "log_prob": jnp.mean(log_prob)}

    (loss, metrics), grads = nnx.value_and_grad(loss_fn, has_aux=True)(model)
    optimizer.update(model, grads)
    return metrics


# JIT-compile training step for performance
jit_train_step = nnx.jit(train_step)

Training Objective:

  • Maximize log-likelihood = minimize negative log-likelihood
  • log_prob includes both base distribution probability and log-determinant of transformation
  • Loss should decrease as model learns the data distribution

Step 7: Training Loop¤

Train the model for multiple epochs:

history = {"step": [], "loss": [], "log_prob": [], "lr": []}
train_key = jax.random.key(999)
global_step = 0

print(f"Training for {NUM_EPOCHS} epochs...")

for epoch in range(NUM_EPOCHS):
    epoch_losses = []

    for batch in tqdm(train_loader, desc=f"Epoch {epoch+1}/{NUM_EPOCHS}"):
        train_key, dequant_key = jax.random.split(train_key)

        # Preprocess: dequantize and scale
        batch_processed = preprocess_for_flow(batch, dequant_key)
        batch_jax = jnp.array(batch_processed)

        # JIT-compiled training step
        metrics = jit_train_step(model, optimizer, batch_jax)

        # Record history
        current_lr = float(lr_schedule(global_step))
        history["step"].append(global_step)
        history["loss"].append(float(metrics["nll"]))
        history["log_prob"].append(float(metrics["log_prob"]))
        history["lr"].append(current_lr)

        epoch_losses.append(float(metrics["nll"]))
        global_step += 1

    avg_loss = np.mean(epoch_losses)
    print(f"Epoch {epoch+1}: NLL={avg_loss:.2f}")

Training Procedure per Epoch:

  1. Iterate over batches from data loader
  2. Apply fresh dequantization noise each batch
  3. Compute NLL loss and update model parameters
  4. Track loss and learning rate for visualization

Step 8: Generate Samples¤

Generate new digits from the trained model:

n_samples = 16
generated_samples = model.generate(n_samples=n_samples)

# Denormalize from [-1, 1] to [0, 1]
generated_samples = (generated_samples * 0.5) + 0.5
generated_samples = jnp.clip(generated_samples, 0, 1)

# Reshape to images
generated_images = generated_samples.reshape(n_samples, 28, 28)

print(f"Generated {n_samples} samples")

Generation Process:

  1. Sample from base distribution (standard normal)
  2. Apply inverse transformation through all coupling layers
  3. Denormalize to image range

Step 9: Visualize Results¤

# Generated samples grid
fig, axes = plt.subplots(4, 4, figsize=(8, 8))
for i, ax in enumerate(axes.flatten()):
    if i < len(generated_images):
        ax.imshow(np.array(generated_images[i]), cmap='gray')
    ax.axis('off')

plt.suptitle("RealNVP Generated MNIST Digits", fontsize=14, fontweight="bold")
plt.tight_layout()
plt.savefig("flow_samples.png", dpi=150, bbox_inches="tight")

Experiments to Try¤

  1. Quick Training: Fewer epochs for faster iteration
NUM_EPOCHS = 50  # Faster training, slightly lower quality
  1. Smaller Model: Trade quality for speed
coupling_config = CouplingNetworkConfig(
    hidden_dims=(256, 256, 256),  # Smaller networks
)
flow_config = RealNVPConfig(
    num_coupling_layers=8,  # Fewer layers
)
  1. Lower Learning Rate: More stable, slower convergence
BASE_LR = 5e-4    # Lower LR for more stability
WARMUP_STEPS = 500  # More warmup with lower LR
  1. Different Base Distribution: Explore other priors
flow_config = RealNVPConfig(
    base_distribution="uniform",  # Uniform instead of normal
)
  1. Smaller Batch Size: Less memory usage
BATCH_SIZE = 128  # Smaller batches, may need lower LR

Troubleshooting¤

NaN Loss¤

  • Solution: Reduce learning rate to 1e-4 or 5e-5
  • Check: Ensure dequantization is applied (data should be continuous)
  • Fix: Increase gradient clipping threshold or warmup steps

Poor Sample Quality¤

  • Solution: Train for more epochs (100+)
  • Check: Loss should decrease consistently over training
  • Fix: Increase model capacity (more layers, wider networks)

Training Plateau¤

  • Solution: Try different learning rate schedule
  • Check: Learning rate should still be non-zero
  • Fix: Increase batch size for smoother gradients

Out of Memory¤

  • Solution: Reduce batch size or model size
  • Check: MNIST 784-dim flattened images + 8 coupling layers fits in 8GB+
  • Fix: Use gradient checkpointing for large models

Summary¤

In this tutorial, you learned:

  • Artifex Flow API: Using RealNVP with configuration classes
  • Dequantization: Why and how to preprocess discrete data for flows
  • LR Scheduling: Warmup + cosine decay for stable training
  • Training: Maximum likelihood via negative log-likelihood
  • Generation: Sampling from trained flow model

Next Steps¤

Documentation Resources¤

Papers¤

  1. Density Estimation using Real-NVP (Dinh et al., 2016)

  2. RealNVP paper: https://arxiv.org/abs/1605.08803

  3. Glow: Generative Flow with Invertible 1x1 Convolutions (Kingma & Dhariwal, 2018)

  4. Glow paper: https://arxiv.org/abs/1807.03039

  5. Neural Spline Flows (Durkan et al., 2019)

  6. NSF paper: https://arxiv.org/abs/1906.04032

Congratulations! You've successfully trained a Flow model using Artifex's RealNVP API!
